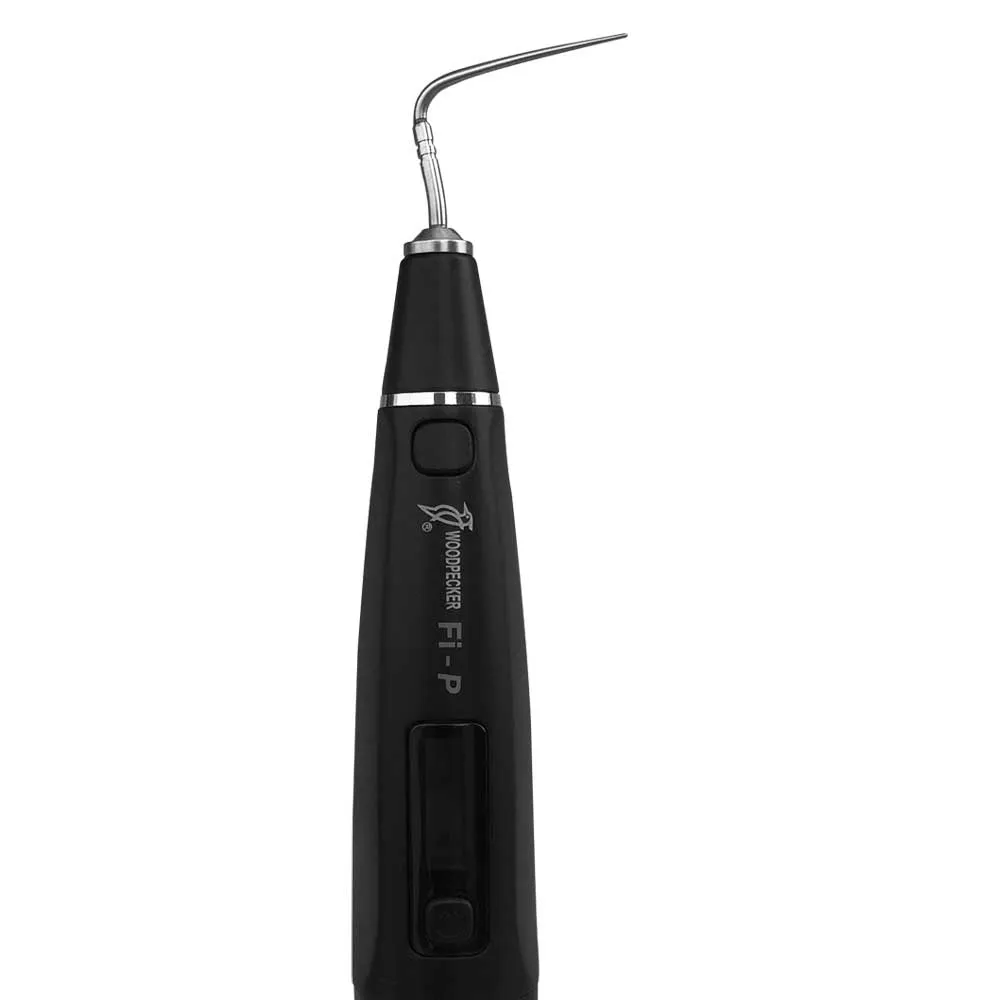

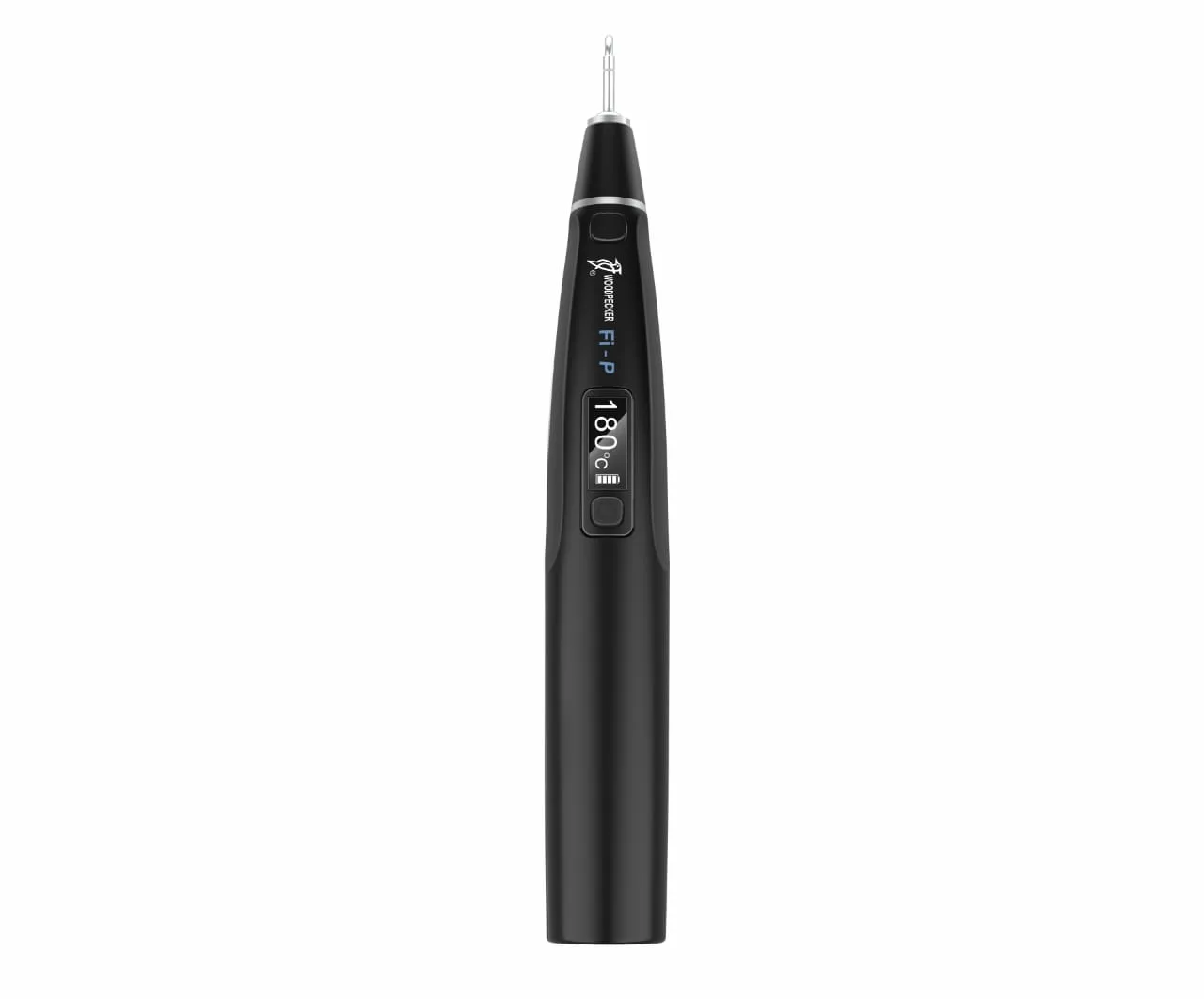

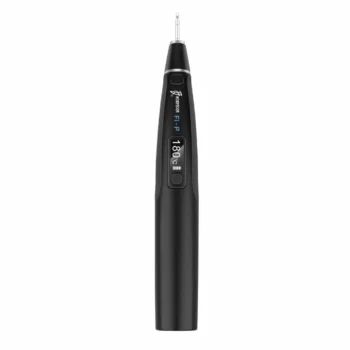

Woodpecker Obturation Pen System

Decription:

The Woodpecker Obturation Pen System is a versatile tool used in endodontic procedures to facilitate efficient root canal obturation. It is designed to aid in the placement and sealing of gutta-percha, a thermoplastic material commonly used in root canal treatments. With its ergonomic design and user-friendly features, this system offers enhanced precision and control during the obturation process. The Woodpecker Obturation Pen System operates through a combination of heating, cutting, and packing mechanisms to ensure optimal root canal obturation. It begins by preparing the gutta-percha points, which are selected based on the requirements of the root canal being treated. The system allows for the customization of gutta-percha points, ensuring a precise fit within the canal.

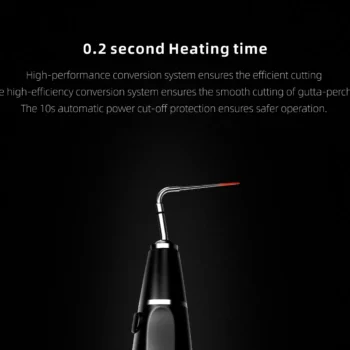

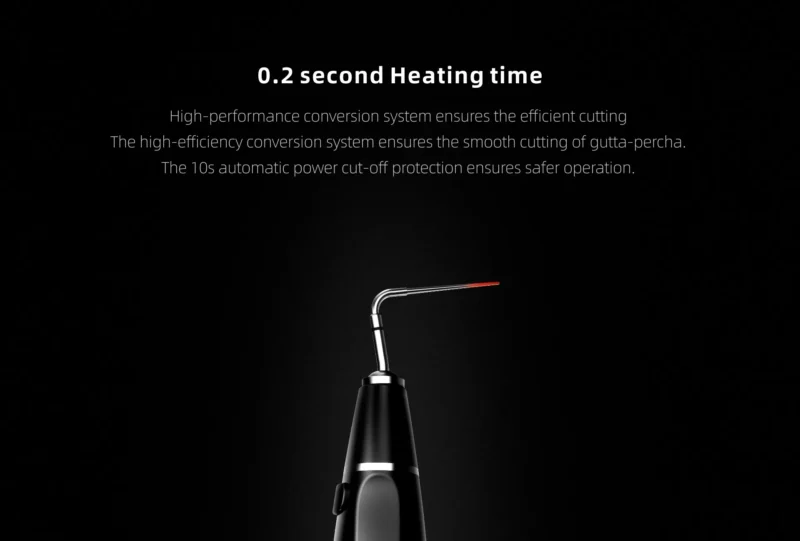

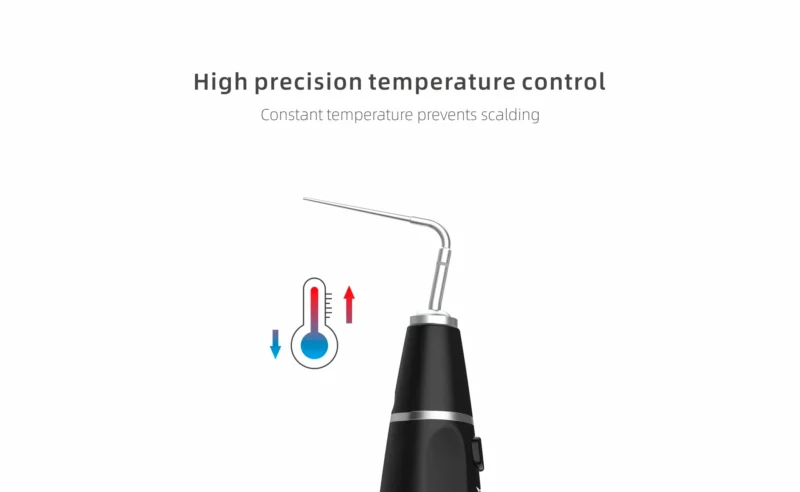

The system features a heating mechanism that softens the gutta-percha, making it pliable and easier to manipulate during placement. The temperature settings can be adjusted to meet the specific needs of the procedure. Once softened, the gutta-percha is carefully placed within the root canal, ensuring complete coverage and sealing of the canal walls.

The Woodpecker Obturation Pen System also incorporates a cutting mechanism to trim excess gutta-percha, achieving a neat and precise obturation. It assists in removing any obstructions or irregularities within the canal, ensuring a smooth and uniform seal. Additionally, the packing mechanism aids in compacting the gutta-percha, ensuring a tight seal and filling any gaps or voids.

Features:

• Precise and efficient heating for optimal root canal filling.
• Optional preset temperatures for customizable heating.
• Intuitive interface with user-friendly controls.

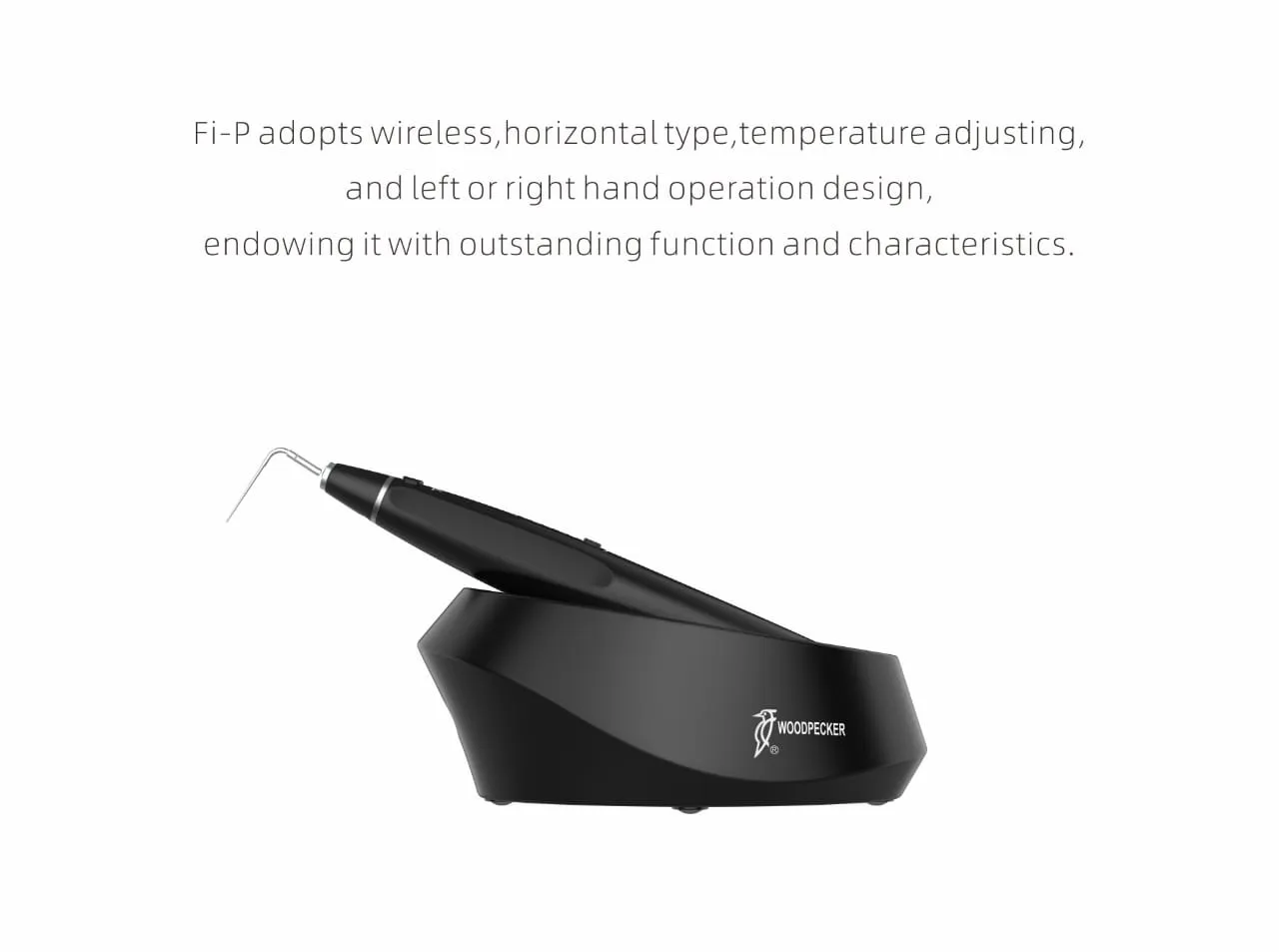

• Portable and rechargeable design for convenience.

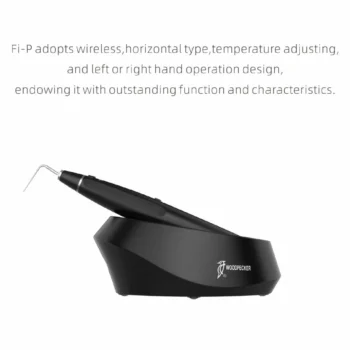

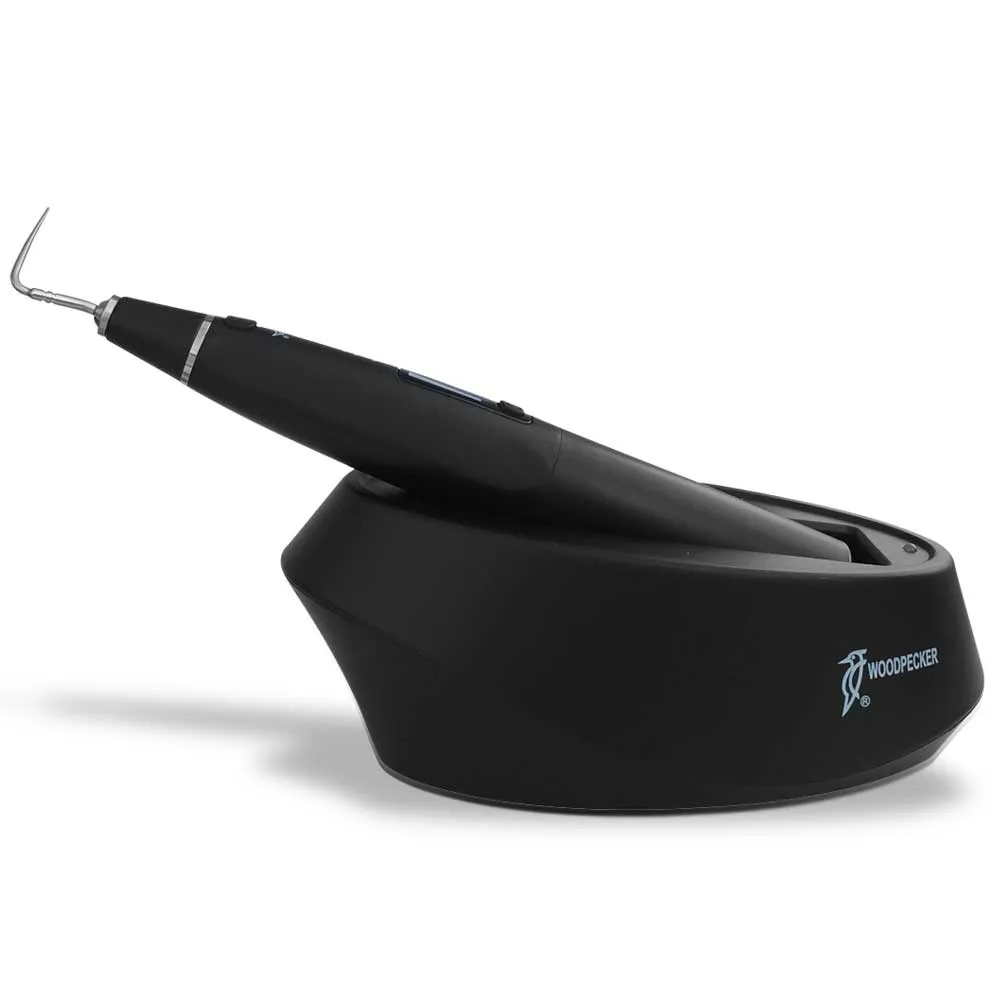

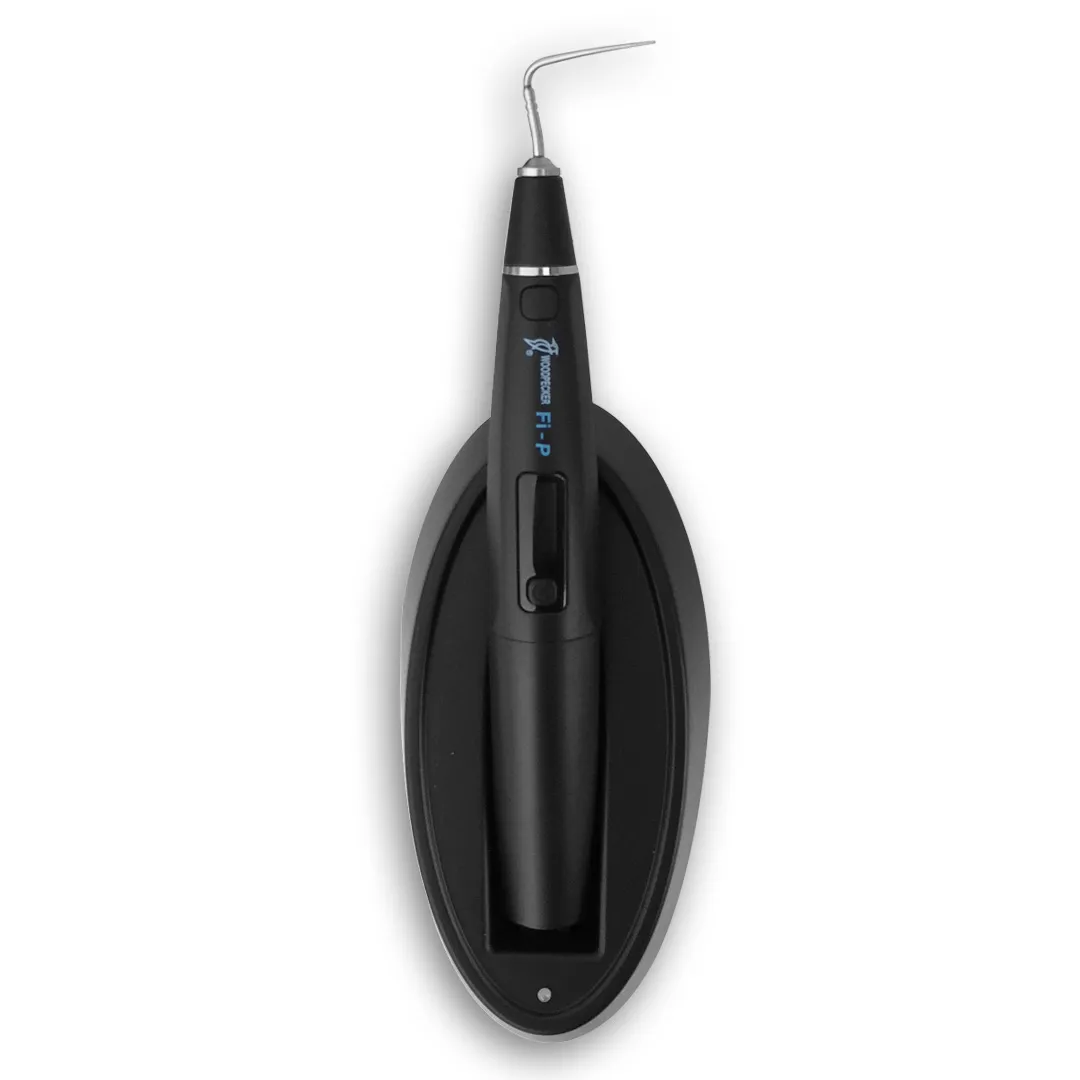

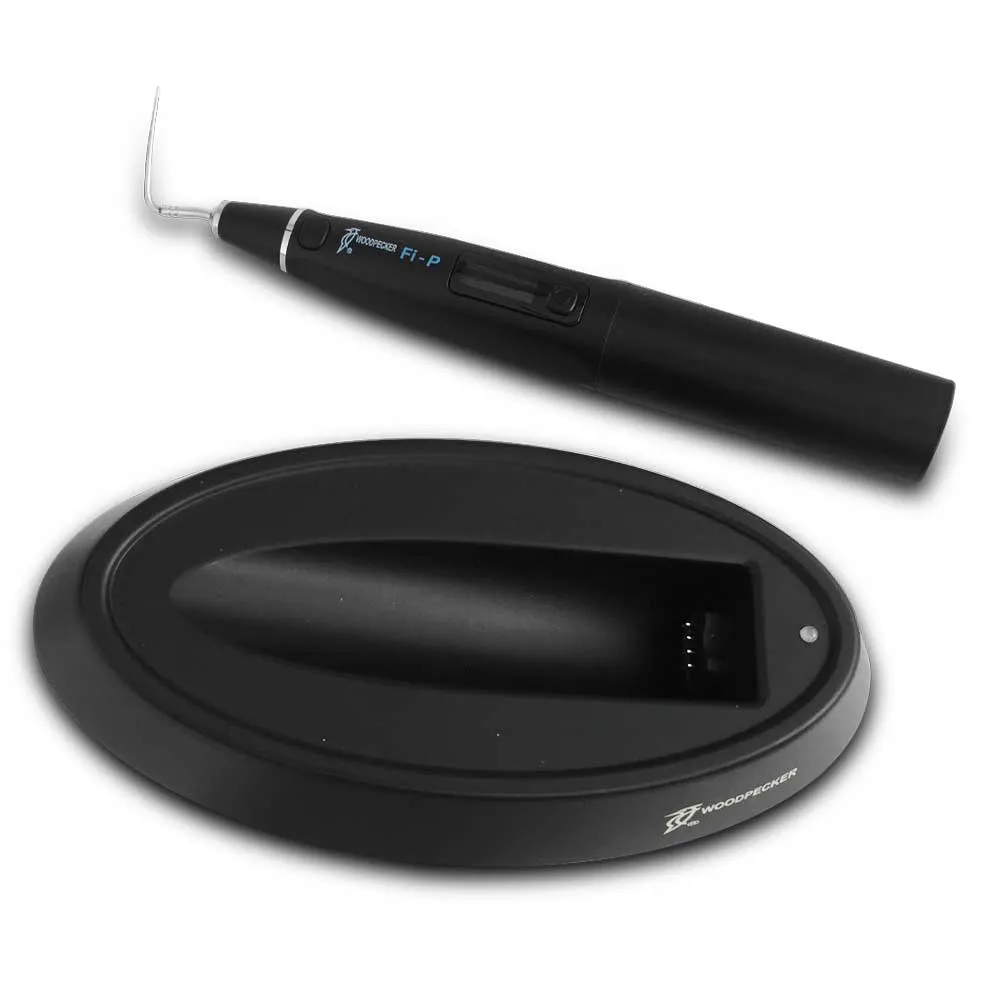

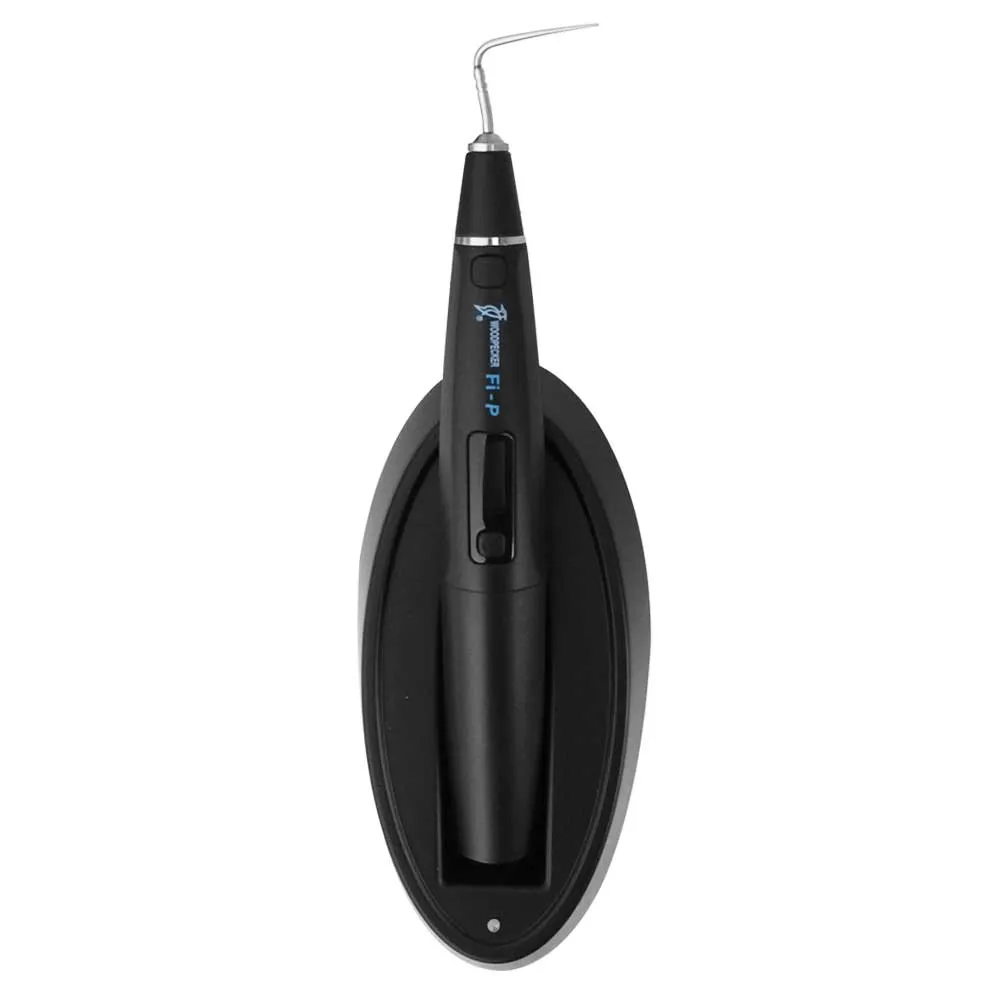

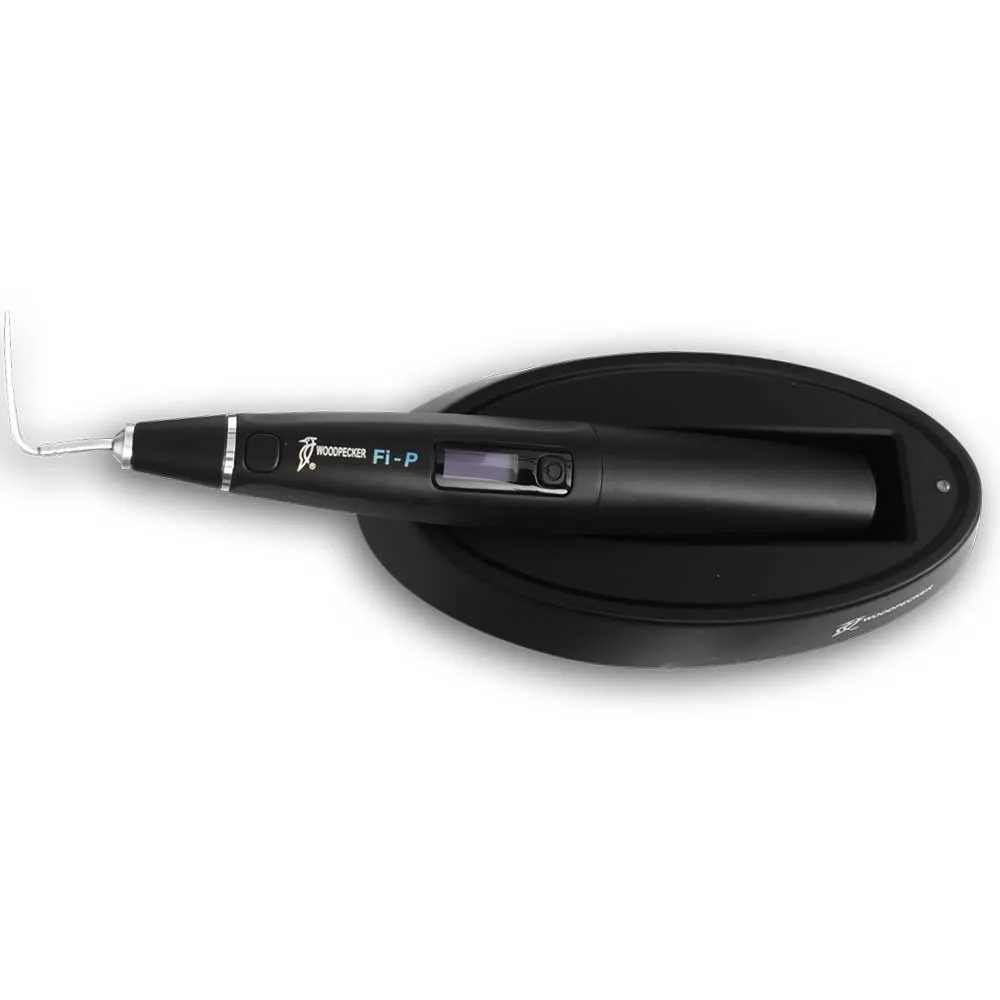

• Dedicated charging base for secure storage and charging.
• Safety classification and durable construction.
• Versatile application for various endodontic procedures.

Key specification:

Size:

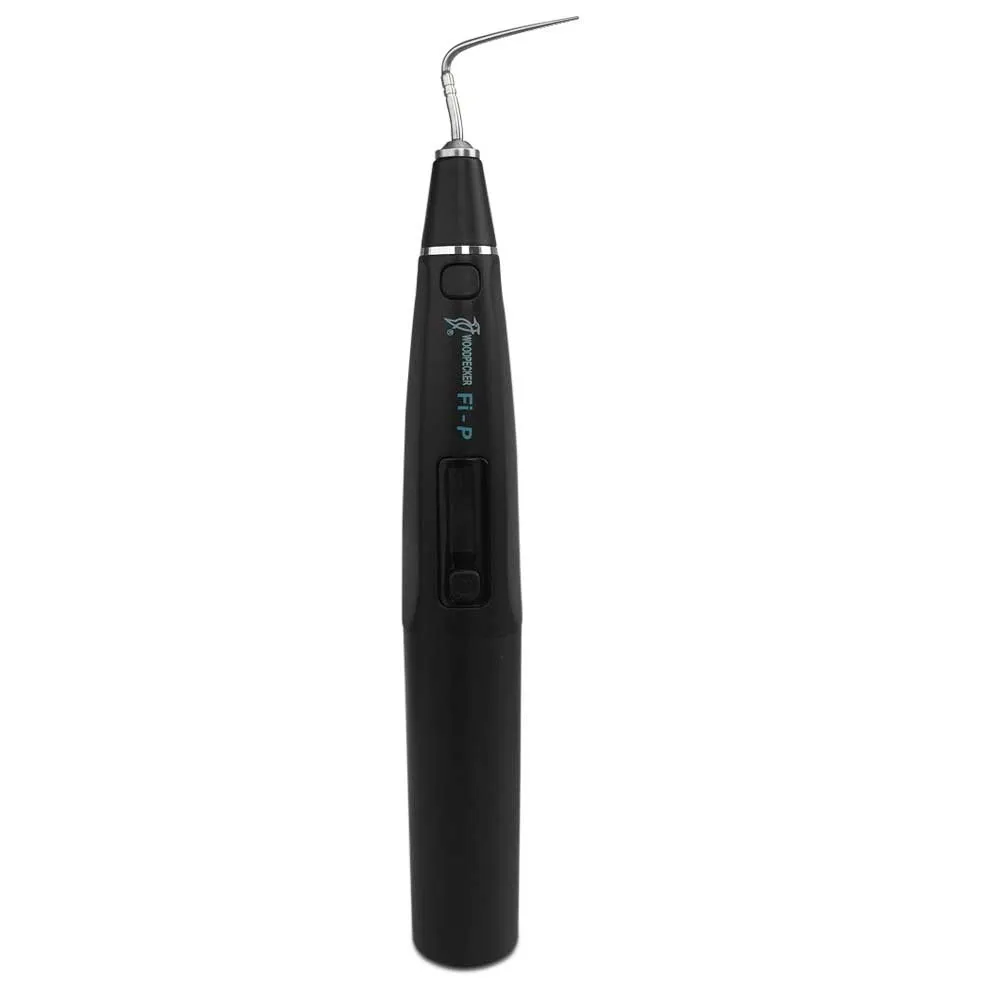

• Heating and Packing Instrument: 23.8mm × 158.3mm × 23.8mm
• Charging base: 75.5mm × 149.7mm × 62.6mm

Weight:

• Heating and Packing Instrument: 80g
• Charging base: 195g
• Power adapter: 167g

Technical Parameters:

• Classification: Class Ⅱ (AC/DC power adapter)

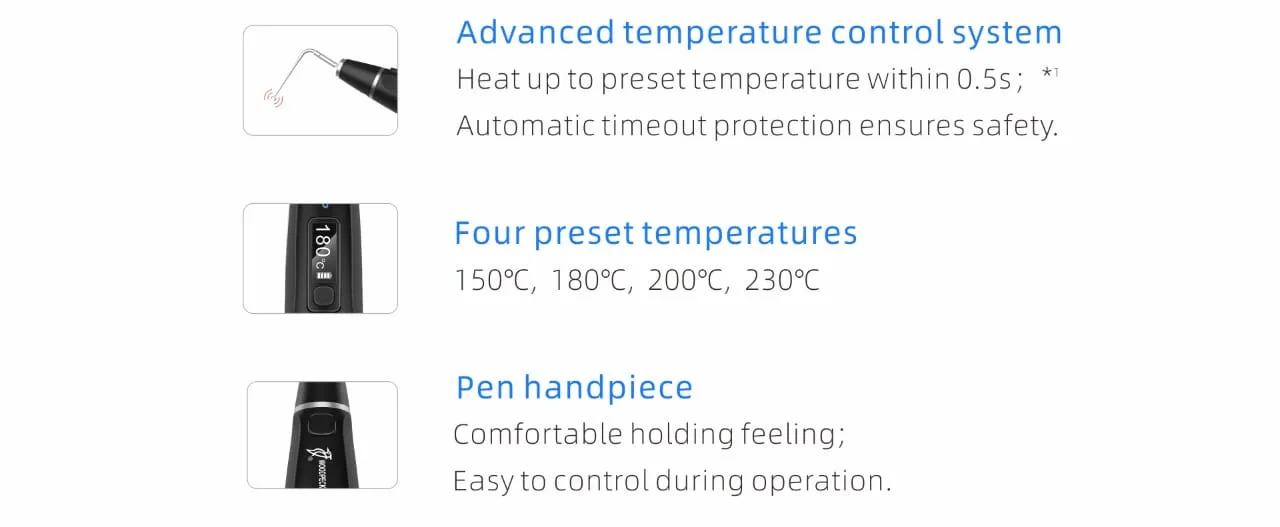

• Optional preset temperatures: 150℃ → 180℃ → 200℃ → 230℃
• Time consumption for charging: About 2.5 hours
• Power supply:
  • Input: AC100V-240V, 50/60Hz, 800mA
  • Output: DC15V/1.6A

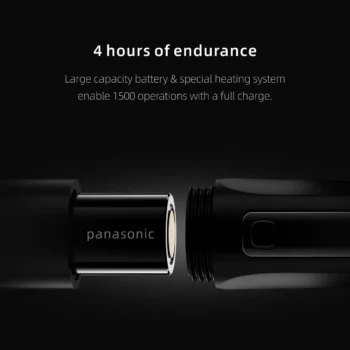

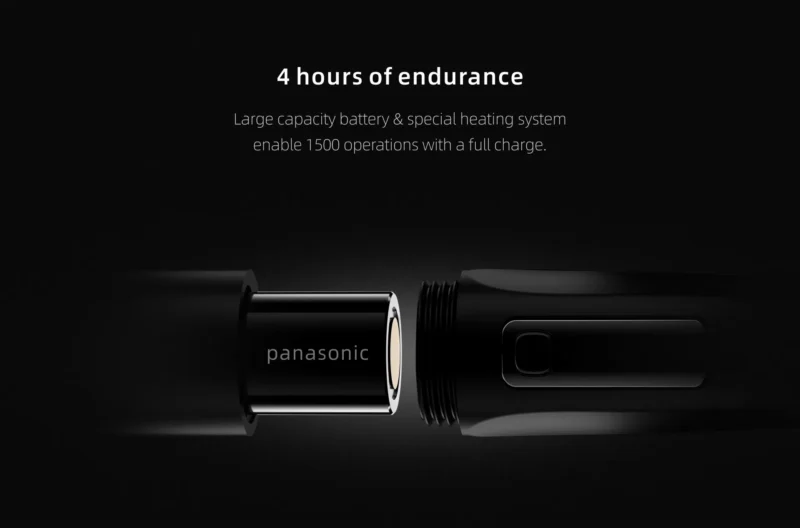

• Battery capacity: Chargeable battery with 2000mAh capacity

Packaging:

• 1 x Main unit
• 1 x Charging stand
• 1 x Power adapter
• 1 x WP4004 tip (Taper 4%)
• 1 x WP4504 tip (Taper 4%)
• 1 x WP5506 tip (Taper 6%)
• 1 x WP5508 tip (Taper 8%)
• 4 x Heat insulation sleeve of tips
• 1 x Instruction manual
